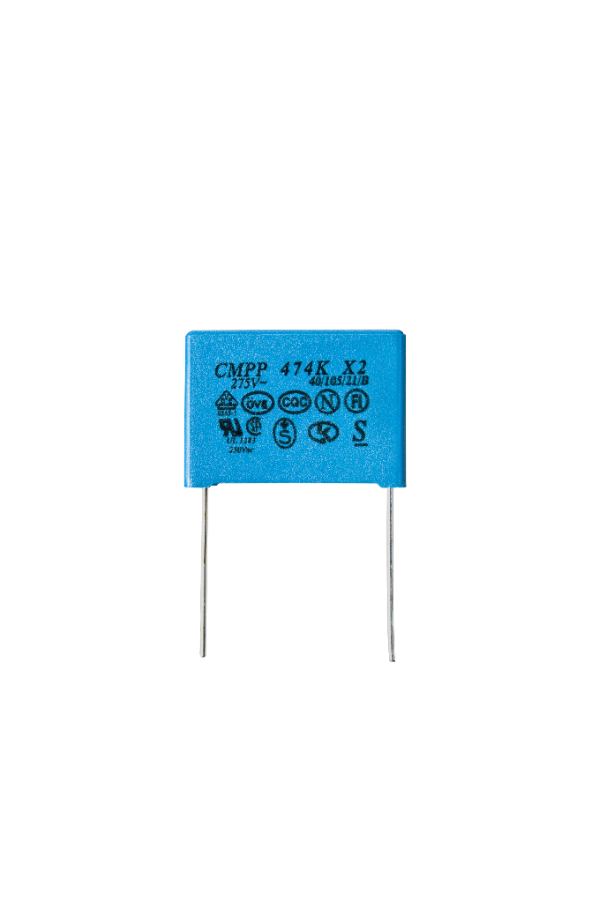

Features
    Miniaturized
    -Plastic Case (UL94 V-0), Epoxy resin sealing
    -RoHS Compliant
Applications
    Interference (EMI) suppression
CMPS.pdf(651.77 Kb)

Specifications

Reference Standard: IEC 60384-14

Climatic Category: 40 / 105/56/B

Rated Temperature: 105℃

Operation Temperature Range: -40℃~+105℃

Rated Voltage: 330Vac

Capacitance Range: 0.001 –1.0 μF

Capacitance Tolerance: ±20%, ±10%




Cap.(μF) Dimensions(Max) Pitch-d PART NUMBER
W (±0.5) H (±0.5) T (±0.5) T D L H D P P1
0.001 13 10 5 10.0-0.6 CMPS AC300V102K 10S5
0.0012 13 10 5 10.0-0.6 CMPS AC300V122K 10S5
0.0015 13 10 5 10.0-0.6 CMPS AC300V152K 10S5
0.0018 13 10 5 10.0-0.6 CMPS AC300V182K 10S5
0.0022 13 10 5 10.0-0.6 CMPS AC300V222K 10S5
0.0025 13 10 5 10.0-0.6 CMPS AC300V252K 10S5
0.0027 13 10 5 10.0-0.6 CMPS AC300V272K 10S5
0.0033 13 11 5 10.0-0.6 CMPS AC300V332K 10S5
0.0039 13 11 5 10.0-0.6 CMPS AC300V392K 10S5
0.0047 13 11 5 10.0-0.6 CMPS AC300V472K 10S5
0.0056 13 12 6 10.0-0.6 CMPS AC300V562K 10S5
0.0068 13 12 6 10.0-0.6 CMPS AC300V682K 10S5
0.0082 13 12.5 6.5 10.0-0.6 CMPS AC300V822K 10S5
0.01 13 13 7 10.0-0.6 CMPS AC300V103K 10S5
0.0022 18 9 4.5 15.0-0.8 CMPS AC300V222K 15S5
0.0027 18 9 4.5 15.0-0.8 CMPS AC300V272K 15S5
0.0033 18 9 4.5 15.0-0.8 CMPS AC300V332K 15S5
0.0039 18 9 4.5 15.0-0.8 CMPS AC300V392K 15S5
0.0047 18 9 4.5 15.0-0.8 CMPS AC300V472K 15S5
0.0056 18 9 4.5 15.0-0.8 CMPS AC300V562K 15S5
0.0068 18 11 5 15.0-0.8 CMPS AC300V682K 15S5
0.0082 18 11 5 15.0-0.8 CMPS AC300V822K 15S5
0.01 18 11 5 15.0-0.8 CMPS AC300V103K 15S5
0.012 18 11 5 15.0-0.8 CMPS AC300V123K 15S5
0.015 18 11 5 15.0-0.8 CMPS AC300V153K 15S5
0.018 18 12 6 15.0-0.8 CMPS AC300V183K 15S5
0.022 18 12 6 15.0-0.8 CMPS AC300V223K 15S5
0.025 18 13 7 15.0-0.8 CMPS AC300V253K 15S5
0.027 18 13 7 15.0-0.8 CMPS AC300V273K 15S5
0.033 18 13.5 7.5 15.0-0.8 CMPS AC300V333K 15S5
0.039 18 14.5 8.5 15.0-0.8 CMPS AC300V393K 15S5
0.047 18 14.5 8.5 15.0-0.8 CMPS AC300V473K 15S5
0.056 18 16 10 15.0-0.8 CMPS AC300V563K 15S5
0.068 18 16 10 15.0-0.8 CMPS AC300V683K 15S5
0.082 18 19 11 15.0-0.8 CMPS AC300V823K 15S5
0.01 26 15 6 22.5-0.8 CMPS AC300V103K 22.5S5
0.012 26 15 6 22.5-0.8 CMPS AC300V123K 22.5S5
0.015 26 15 6 22.5-0.8 CMPS AC300V153K 22.5S5
0.018 26 15 6 22.5-0.8 CMPS AC300V183K 22.5S5
0.022 26 15 6 22.5-0.8 CMPS AC300V223K 22.5S5
0.027 26 15 6 22.5-0.8 CMPS AC300V273K 22.5S5
0.033 26 15 6 22.5-0.8 CMPS AC300V333K 22.5S5
0.039 26 15 6 22.5-0.8 CMPS AC300V393K 22.5S5
0.047 26 15 6 22.5-0.8 CMPS AC300V473K 22.5S5
0.056 26 15 6 22.5-0.8 CMPS AC300V563K 22.5S5
0.068 26 16.5 7 22.5-0.8 CMPS AC300V683K 22.5S5
0.082 26 16.5 7 22.5-0.8 CMPS AC300V823K 22.5S5
0.1 26 17 8.5 22.5-0.8 CMPS AC300V104K 22.5S5
0.12 26 18 9 22.5-0.8 CMPS AC300V124K 22.5S5
0.15 26 19 10 22.5-0.8 CMPS AC300V154K 22.5S5
0.18 26 22 12.5 22.5-0.8 CMPS AC300V184K 22.5S5
0.22 26 22 12.5 22.5-0.8 CMPS AC300V224K 22.5S5
0.25 26 25 15 22.5-0.8 CMPS AC300V254K 22.5S5
0.27 26 25 15 22.5-0.8 CMPS AC300V274K 22.5S5
0.33 26 27 16 22.5-0.8 CMPS AC300V334K 22.5S5
0.1 32 18 9 27.5-0.8 CMPS AC300V104K 27.5S5
0.12 32 18 9 27.5-0.8 CMPS AC300V124K 27.5S5
0.15 32 18 9 27.5-0.8 CMPS AC300V154K 27.5S5
0.18 32 20 11 27.5-0.8 CMPS AC300V184K 27.5S5
0.22 32 20 11 27.5-0.8 CMPS AC300V224K 27.5S5
0.25 32 22 13 27.5-0.8 CMPS AC300V254K 27.5S5
0.27 32 22 13 27.5-0.8 CMPS AC300V274K 27.5S5
0.33 32 24.5 15 27.5-0.8 CMPS AC300V334K 27.5S5
0.39 32 24.5 15 27.5-0.8 CMPS AC300V394K 27.5S5
0.47 32 26 18 27.5-0.8 CMPS AC300V474K 27.5S5
0.56 32 30 20 27.5-0.8 CMPS AC300V564K 27.5S5
0.68 32 30 20 27.5-0.8 CMPS AC300V684K 27.5S5
0.82 32 34 22 27.5-0.8 CMPS AC300V824K 27.5S5
0.33 42 22 14 37.5-1.0 CMPS AC300V334K 37.5S5
0.39 42 22 14 37.5-1.0 CMPS AC300V394K 37.5S5
0.47 42 26 15 37.5-1.0 CMPS AC300V474K 37.5S5
0.56 42 26 15 37.5-1.0 CMPS AC300V564K 37.5S5
0.68 42 30 18 37.5-1.0 CMPS AC300V684K 37.5S5
0.82 42 30 18 37.5-1.0 CMPS AC300V824K 37.5S5
1 42 32 21 37.5-1.0 CMPS AC300V105K 37.5S5
